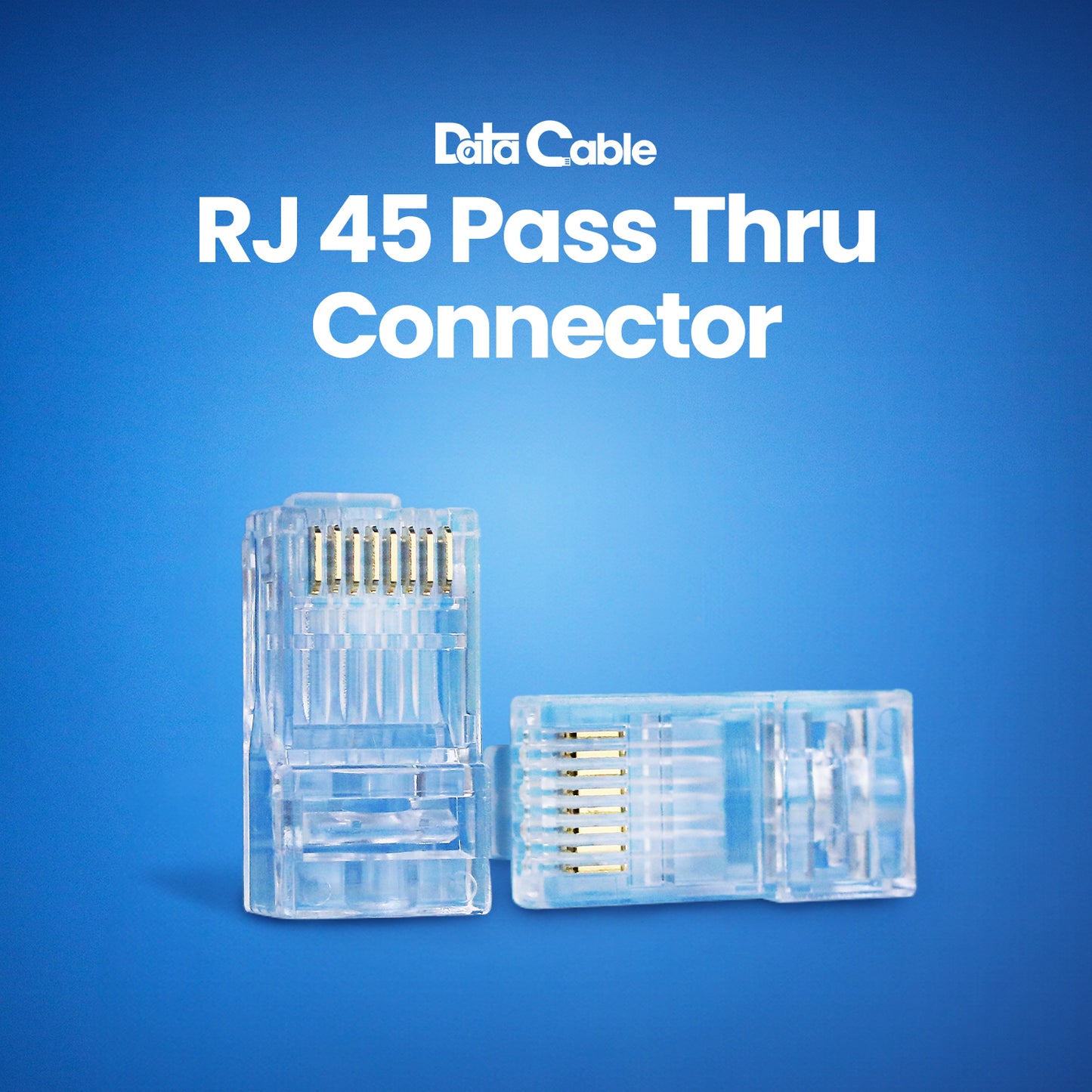

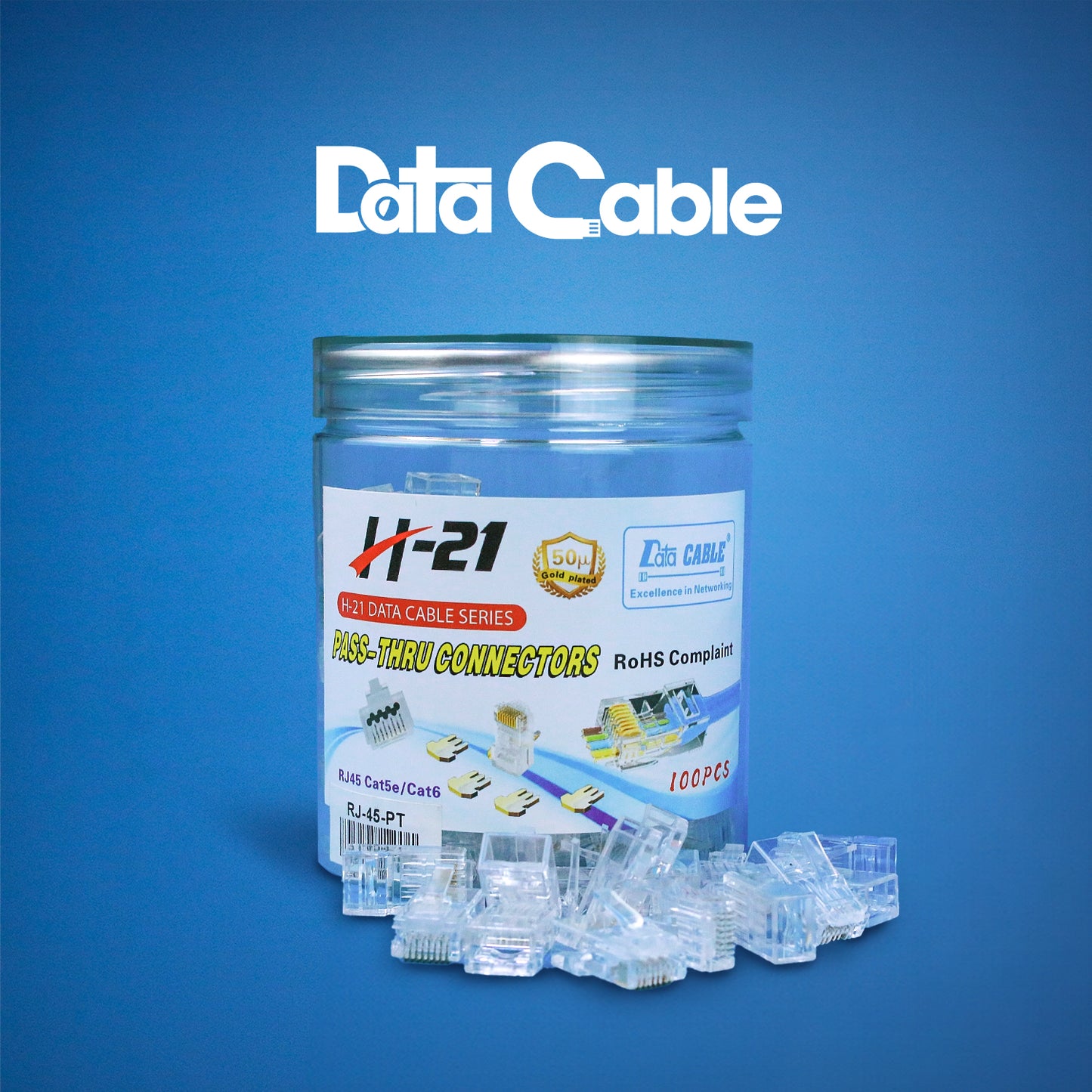

H21 RJ-45 Pass Thru

contact solutions@h21sourcesopc.com for details

RJ45 Pass-Through connector or simply a pass-through connector, is used for terminating Ethernet cables. This type of connector is commonly used in networking and telecommunications applications. Here's an explanation of its purpose and use:

1. Simplified Termination Process:

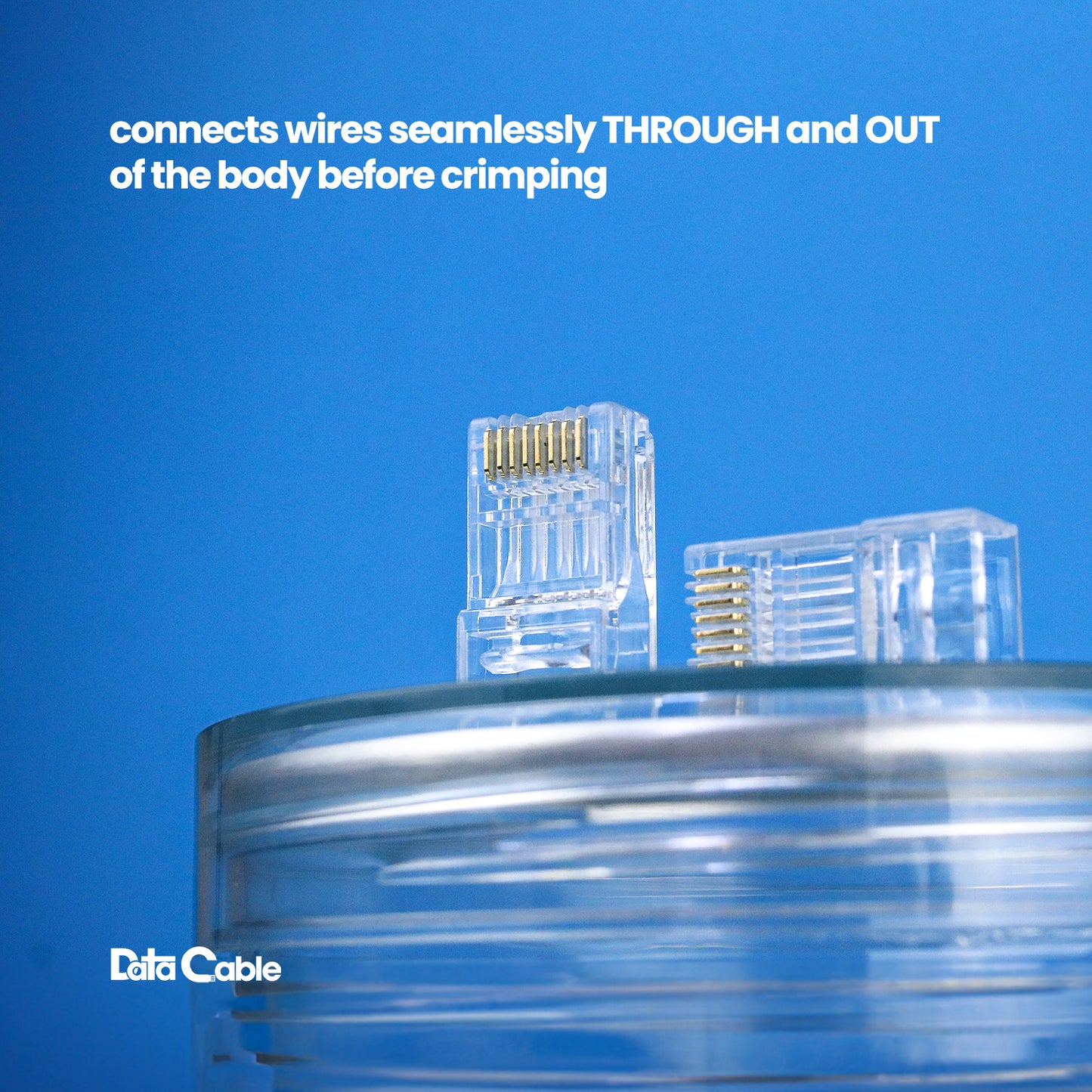

• One of the main advantages of RJ45 Pass-Thru connectors is the simplified termination process. Traditional connectors often require precise alignment and careful arrangement of individual wires before crimping. Pass-Thru connectors feature a design where the wires pass through the connector completely, allowing for easier and more efficient cable termination.

2. Time-Saving:

• The pass-through design reduces the time and effort required for terminating Ethernet cables. Since the wires pass through the connector and can be trimmed after insertion, it eliminates the need for untwisting and arranging individual wires, making the termination process quicker and more straightforward.

3. Compatibility:

• RJ45 Pass-Thru connectors are compatible with various Ethernet cable categories, including Cat5e, Cat6, and Cat6a. This makes them versatile and suitable for a range of networking applications, supporting different data transmission speeds and bandwidths.

4. Suitable for Different Cable Thickness:

• The pass-thru connectors are often designed to accommodate different cable thicknesses. This flexibility allows users to work with various Ethernet cable types without needing specific connectors for each.

5. Consistent Performance:

• When properly terminated, RJ45 Pass-Thru connectors can provide consistent and reliable performance, ensuring that the cables meet the required standards for data transmission in networking environments.

6. Professional Installations:

• These connectors are commonly used in professional networking installations where efficient cable termination is essential. They are often favored by installers and network technicians who need to terminate a large number of cables accurately and quickly.

7. TIA/EIA Compliance:

• Pass-Thru connectors are designed to meet the standards set by organizations such as the Telecommunications Industry Association (TIA) and the Electronic Industries Alliance (EIA), ensuring that the terminated cables adhere to industry specifications.

In summary, RJ45 Pass-Thru connectors are used for terminating Ethernet cables in a more user-friendly and time-efficient manner compared to traditional connectors. They are especially valuable in scenarios where large-scale cable terminations are required, such as in networking installations, data centers, or when creating patch cables for networking equipment.
